SensorSwitch Line Voltage Fixture Mount Occupancy Sensor, Indoor PIR Motion Sensor Light Control for Commercial Ceiling Lights, MVOLT 120–277V, High & Low Mount 360º Motion Detection

Product image 1
Product image 2
Product image 3

SensorSwitch Line Voltage Fixture Mount Occupancy Sensor, Indoor PIR Motion Sensor Light Control for Commercial Ceiling Lights, MVOLT 120–277V, High & Low Mount 360º Motion Detection

  • COMMERCIAL PIR SENSOR: The SensorSwitch LSXR line voltage fixture mount occupancy sensor automates indoor lighting; Passive Infrared (PIR) detection cuts wasted run time and saves energy in warehouses, offices, corridors, and gyms
  • PIR COVERAGE CHOICES: Interchangeable lenses fine-tune coverage and energy savings - set your indoor motion sensor to High Mount (up to 45 ft) or Low Mount (7-15 ft) 360° detection; Both options are optimized for large motion (e.g. walking) detection
  • EASY TO INSTALL MOTION LIGHT SENSOR: Mount through a 1/2" knockout using threaded chase nipple; Snap-lock bracket secures and drops lens 3" for fixture clearance; Reversible hot/load wires simplify wiring; Push-button programming and Test Mode speed setup
  • SENSOR FEATURES: No PIR field calibration or sensitivity adjustments required; Digital push-button programming for features including Time Delay (30 seconds to 30 minutes), Sunlight Discount Factor, and more; Convenient test mode quickens initial testing

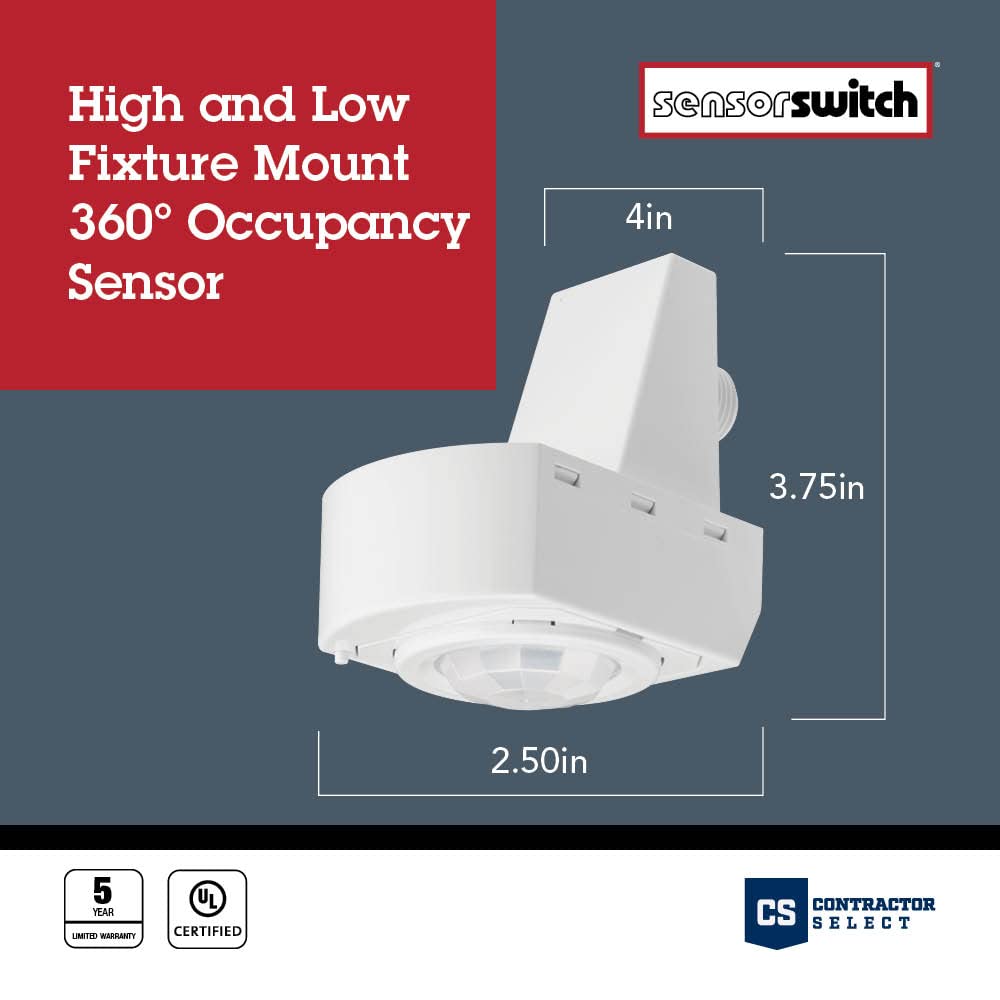

  • SPECIFICATIONS: Compact 3.75"H × 2.50"W × 4.00"D fits tight fixtures; Green LED indicator light; UL and cUL listed and Title 24 compliant; MVOLT 120–277 VAC; Default 10-minute time delay is field adjustable; Five-year limited warranty
$48.75
SensorSwitch Line Voltage Fixture Mount Occupancy Sensor, Indoor PIR Motion Sensor Light Control for Commercial Ceiling Lights, MVOLT 120–277V, High & Low Mount 360º Motion Detection—
$48.75

Product Information

Shipping & Returns

Description

  • COMMERCIAL PIR SENSOR: The SensorSwitch LSXR line voltage fixture mount occupancy sensor automates indoor lighting; Passive Infrared (PIR) detection cuts wasted run time and saves energy in warehouses, offices, corridors, and gyms
  • PIR COVERAGE CHOICES: Interchangeable lenses fine-tune coverage and energy savings - set your indoor motion sensor to High Mount (up to 45 ft) or Low Mount (7-15 ft) 360° detection; Both options are optimized for large motion (e.g. walking) detection
  • EASY TO INSTALL MOTION LIGHT SENSOR: Mount through a 1/2" knockout using threaded chase nipple; Snap-lock bracket secures and drops lens 3" for fixture clearance; Reversible hot/load wires simplify wiring; Push-button programming and Test Mode speed setup
  • SENSOR FEATURES: No PIR field calibration or sensitivity adjustments required; Digital push-button programming for features including Time Delay (30 seconds to 30 minutes), Sunlight Discount Factor, and more; Convenient test mode quickens initial testing
  • SPECIFICATIONS: Compact 3.75"H × 2.50"W × 4.00"D fits tight fixtures; Green LED indicator light; UL and cUL listed and Title 24 compliant; MVOLT 120–277 VAC; Default 10-minute time delay is field adjustable; Five-year limited warranty
