SensorSwitch Wall Mount Motion Sensor Switch, Passive Infrared Wall Switch and Occupancy Sensor and Dusk-to-Dawn Photocell, WSX Series, Single Relay, Ivory

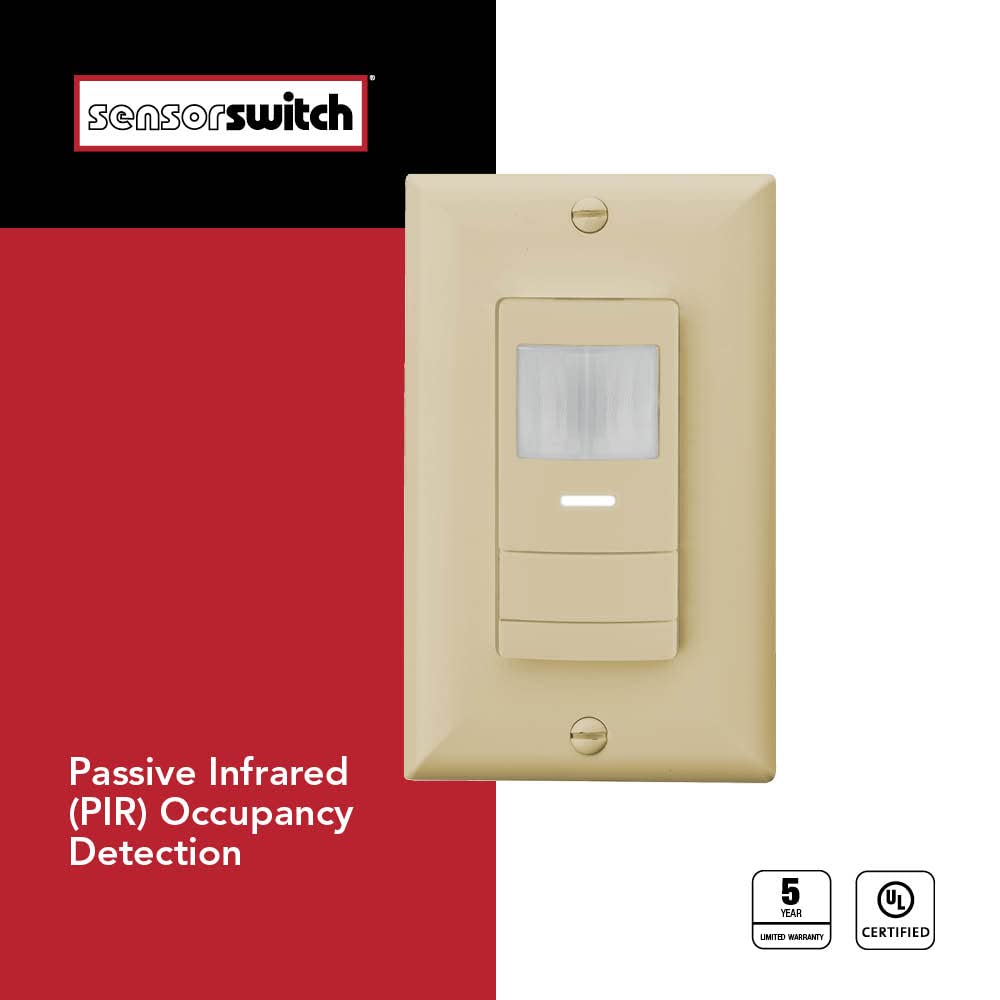

  • MOTION SENSOR LIGHT SWITCH: Sensor Switch WSX Series wall switch PIR motion sensor provides simple, cost-effective control for offices, restrooms, closets, copy rooms, and other small spaces; Compatible with LEDs, ballasts, CFLs, and incandescent lights
  • PIR COVERAGE PATTERN: PIR sensor detects small motion (hand movements) at distances up to 20' and large motion (walking) beyond 36'; Wall-to-wall coverage supports reliable response; Adjustable time delay and operating modes are set via push-button
  • ADDITIONAL FEATURES: Integrated dusk-to-dawn photocell (disabled by default) prevents light from turning on if sufficient daylight is present; Vandal resistant lens on the sensor ensures durability; Push-button programmable without removing cover plate
  • SETUP DETAILS: Patent-pending wiring method enables the motion light sensor to function either with or without a neutral connection; Line and load wires are interchangeable to prevent wiring backwards; Programmable via Sensor Switch VLP app or push button

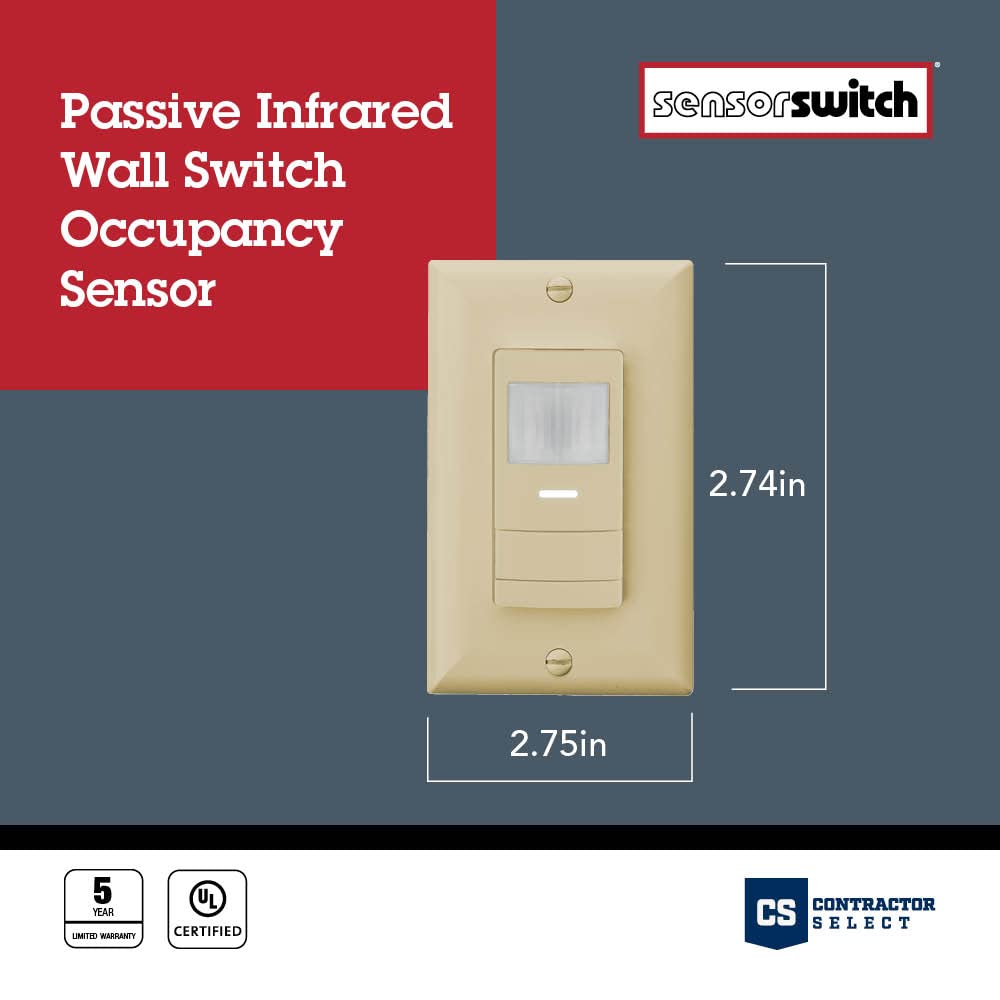

  • SPECIFICATIONS: Indoor motion sensor is dual voltage (120-277V); UL certified and RoHS compliant; Measures 2.74" H x 1.68" W x 1.63" D; Motion detector switch mounting height 30–48"; 5-year limited warranty
Select Style
Select Size
From $92.95
SensorSwitch Wall Mount Motion Sensor Switch, Passive Infrared Wall Switch and Occupancy Sensor and Dusk-to-Dawn Photocell, WSX Series, Single Relay, Ivory—
$92.95

Product Information

Shipping & Returns

Description

  • MOTION SENSOR LIGHT SWITCH: Sensor Switch WSX Series wall switch PIR motion sensor provides simple, cost-effective control for offices, restrooms, closets, copy rooms, and other small spaces; Compatible with LEDs, ballasts, CFLs, and incandescent lights
  • PIR COVERAGE PATTERN: PIR sensor detects small motion (hand movements) at distances up to 20' and large motion (walking) beyond 36'; Wall-to-wall coverage supports reliable response; Adjustable time delay and operating modes are set via push-button
  • ADDITIONAL FEATURES: Integrated dusk-to-dawn photocell (disabled by default) prevents light from turning on if sufficient daylight is present; Vandal resistant lens on the sensor ensures durability; Push-button programmable without removing cover plate
  • SETUP DETAILS: Patent-pending wiring method enables the motion light sensor to function either with or without a neutral connection; Line and load wires are interchangeable to prevent wiring backwards; Programmable via Sensor Switch VLP app or push button
  • SPECIFICATIONS: Indoor motion sensor is dual voltage (120-277V); UL certified and RoHS compliant; Measures 2.74" H x 1.68" W x 1.63" D; Motion detector switch mounting height 30–48"; 5-year limited warranty
